Description for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
GJB599A series are made according to the same standard with MIL-DTL-38999K series. The difference is that: the basic part number of GJB599A is JY, while MIL-DTL-38999K is MS. GJB599A series is interchangeable with MIL-DLT-38999K series..
[Part number example]
JY27467T25E35SN-H JY series plug, threaded shell end, can be mounted with accessory, 25# shell, stainless steel passive plating, 35# layout, filled with sockets, N polarization, soldering contacts.
Specification for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
| Prct attribute |
Attribute Value |
| Manufacturer |
RAYMO |
| Prct name |
Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors |
| Model |
JY27467T09F35PNH |
| Contact Gender |
pin(male) |
| Contacts |
6-22D |
| Body size |
09 |
| Terminal |
Solder |
| Housing plating |
electroless nickel plating |
| IP Rating |
IP68 |
| Application |
military systems such as aviation, aerospace, weapon, and other electronic equipment systems |
Electrical data & Mechanical data for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
| Housing |
Aluminum alloy/stainless steel |
| Plating |
B class: olive green cadmium plating
E class: stainless steel passive
F class: electroness nickel plating
|
| Insulator |
Thermoset plastic |
| Grommet and seal |
Silicon rubber |
| Contact |
Gold-plated copper alloy, crimping,
soldering, PCB
|
| Endurance |
500 cycles |
| Vibration |
Sinusoid vibration: frequency 10-2000Hz,
acceleration: 294m/s2
Random vibration: frequency 100-1000Hz,
power spectral density: 1g2/Hz
|
| Shock |
At 3 ms half sinusoid, peak value |
| Operating temperature |
B class: -65℃～+175℃
E, F class: -65℃～+200℃
|
| Salt spray |
According to method 1001 GJB1217
B class 500h, E class 1000h
F class 48h
|
| Relative humidity |
98% at 40℃ |
| Operating height |
≤30480m |
Features for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
- Comply with MIL-DTL-38999 I series
- Quick bayonet coupling, small size, light weight and high density
- EMI/RFI shielding
- Removable crimp contact with scoop-proof design
Application for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Military systems such as
- aviation,
- aerospace,
- weapon,
- and other electronic equipment systems
Our advantage for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
- Original manufacturer
- Excellent R&D team
- 10+ years experience
- OEM & ODM acceptable
- 100% quality tested
- 100% fast delivery
- 100% after-sales service

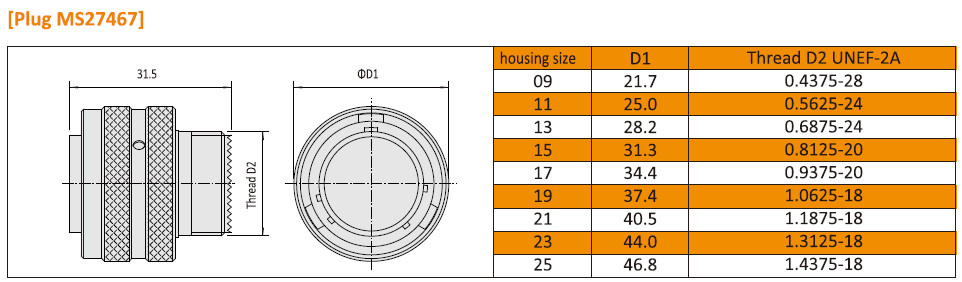

Dimention for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Raymo also do:
- D38999 I seires III series waterproof aviation circular connectors
- Push pull connector LE MOS B series, waterproof K /W/T/half-moon S series, REDEL P series connectors
- Fis chers core series 102 103 1031 104 connectors
- Fis chers minimax series
- Fis chers ultimate series
- O D U_MINI SNAP Push-Pull Circular Connectors
- O D U_AMC-advanced military connector
- O D U_AMC easy clean Connectors
- Mini connector HIROSE connectors
- Cable connector Binders M16 680 678 420 series connectors
- Circular screw fixed M8 M12 connectors
- CABLE ASSEMBLY can be designed according customer real needs.Accept OEM
Product Tags:
|
|
Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors Images
|
