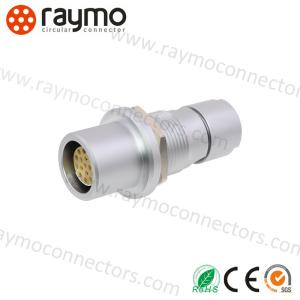

Fischer Dke Circular Push Pull Conenctors 102 103 104 Shell IP68 Circular Connectors

Name: Fischer Dke Circular Push Pull Conenctors 102 103 104 Shell IP68 Circular Connectors
Brand: RAYMO
Price: 4.5 USD

China Fischer Dke Circular Push Pull Conenctors 102 103 104 Shell IP68 Circular Connectors factory

Brand Name : RAYMO

Model Number : RM-DKE-2F1C-P11KS

Certification : CE/ROHS/REACH/SGS/ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Price : 4.5-14.5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/month

Delivery Time : 5-7 working days

Packaging Details : PE BAG AND CARTON

Type : Push pull circular connectors

Gender : female solder contacts

Application : Automotive

Color : natural color

Insulator : PPS/PEEK

Shell material : BRASS

Endurance : 5000 cycles

IP ranking : IP68

Contact Now

Fischer DKE Circular Push Pull Conenctors 102 103 104 Shell

Raymo DKE circular push pull connector brief intrction

Raymo Connectors’ original push-pull automatic locking is widely adopted by the industry for its ease of use, safety of mating and speed in connection and disconnection.

Fully secured against accidental disconnection, it provides unparalleled signal integrity.
ntegrated into the connector housing, it is ideal for compact prct design
Connectors are compatible with Fischer cores connectors

Raymo DKE circular push pull connector characteristic

Secure high performance push pull self-locking system
Sealed up to lP68 and hermetic
3 codes alignment key and polarized keying system to avoid cross-interface
360°EMC shielded
High pin density contributing to equipment miniaturization
Robust and shock resistant designs
Functional in a wide temperature range from -50°C to +250°C
Available solder,PCB and right angle PCB contact

Raymo DKE circular push pull connector specification

RM-F Series Circular Push Pull Connector
Shell size	0F(102). 1F(103), AF(1031),2F(104),3F(105)	Contact No.	2,3,4,5,6,7,8,9,10,12,14,16,19
Shell model	Straight plug FGG	MOQ	1pc
Gender	Male, Female	Free Sample	available
Endurance	5000 mating cycles	IP Level	IP68

Technical Characteristics
Temperature Range	- 40° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP 68	Certifications	ISO9001 CE ROHS SGS

RAYMO RM-F series circular push pull connector Keying Codes Options

All Multipole body styles are mechanically coded.
Code 1 is the standard, but other codes can be requested

Fischer Dke Circular Push Pull Conenctors 102 103 104 Shell IP68 Circular Connectors

Raymo circular push pull circular connector

Army, Navy, Air Force, Gendarmerie, Ministry of National Defense and Coast Guard
Midcal equipments like Disposable equipment
Test & measurement like Data acquisition
Broadcast, like HD and SD cameras
Energy, like Renewable energies
Extreme, such as Sailboat racing

Raymo connectors Chooseing tips:

If you have purchased fischer connector and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:

the use of the environment, indoors or outdoors, waterproof or not;
the panel hole size, to select the appropriate plug and socket of right dimension;
the current-voltage, number of contact and the realization of the function, to determine the contact(cores)
select the appropriate clamp diameter and sheath;
according to the actual needs of different angles of the keys, to determine the keying (the standard keys as N)

Raymo DKE circular connector pictures
