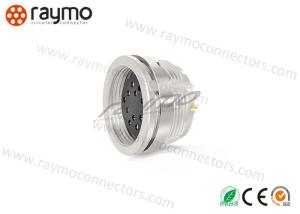

Binder 581/680 Series M16 Panel Mount Connectors Mini Size PBT Insulator

Name: Binder 581680 Series M16 Panel Mount Connectors Mini Size PBT Insulator
Brand: RAYMO
Price: 1 USD

China Binder 581/680 Series M16 Panel Mount Connectors Mini Size PBT Insulator factory

Brand Name : RAYMO

Model Number : 09-0332-00-12

Certification : RoHs2.0, CE, ISO9001:2015, SGS, Reach

Place of Origin : SHENZHEN,CHINA

MOQ : 1 Piece/Pieces

Price : Negotiable

Payment Terms : T/T, D/A, D/P,L/C, MoneyGram, Western Union

Supply Ability : 5000Pieces/ Week

Delivery Time : 5-7working days

Packaging Details : Plastic Bag & Carton

Prct Name : 680 series connectors

Connector locking system : Screw

Contact no. : 2,3, 4, 5, 6,7 ,8, 12

Insulator : PBT

Shell Material : Brass in nicked plated

Degree of protection : IP 40

Mechanical operation : >500 mating cycles

Customs tariff number : 85369010

Contact Now

Binder 581/680 Series Panel Mount Mini Connectors M16

Features and Benefits of M16 680 Series circular connector

Male panel mount connector, solder, Rear fastened
can be 100% compatible with binder 680 series
M16 680 Series Threaded Electrical circular connector
can be 100% compatible with binder 680 series
Compact miniature design
Robust metal shells with good EMI shielding
M16 thread
Quick and easy to assemble
IP40 ranking

Specification of M16 680 Series circular connector

Attribute	Value
Number of Contacts	12
Mounting Type	Cable Mount
Connector Size	Miniature
Plug/Socket	Plug
Termination Method	Solder
IP Rating	IP40
Contact Gender	Male
Current Rating	6.0A
Voltage Rating	250 V
Mating Type	Screw Lock
Body Orientation	Straight
Series	680
Contact Plating	Silver
Minimum Operating Temperature	-40°C
Contact Material	Brass
Maximum Operating Temperature	+85°C

Application of M16 680 Series circular connector

M16 series connector equivalent as Binder Series 680 678 423, 723 family of connectors are rugged,

high-performance circular connectors with excellent EMI shielding .

Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are

available in many styles and mounting methods.

Electrical data of M16 680 Series circular connector

Wire gauge	max, 0.75mm²(max. AWG 20) ( 3-8 poles)
Wire gauge	max, 025mm²(max. AWG 24) (12 poles )
Cable outlet	3-6mm/6-8mm
Mechanical opera	>500 ma
Upper temperature	+ 85 °C
Lower temperature	– 40 °C
Rated voltage	250 V (32 V) 2-4 poles
	60 V (32 V) 5 poles
	250 V (32 V) 6poles
	125V (32 V) 7poles
	60 V (32 V), 8-12poles
Rated impulse voltage	1500V 2-6poles
	800V 7 poles
	500V (32 V)8-12poles
Rated current (40 °C)	7A 2-3 poles
	6A 4-6 poles
	5A 7-8poles
	3A 12poles
Contact resistance	≤ 5 MΩ 3-8 poles
	≤ 3 mΩ 12poles

RAYMO Company Intrce

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.

This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military

Chooseing tips of M16 680 Series circular connector

If you have ordered this shell connector and know the original model P/N,
please tell us.We will directly offer you our correspinding one.
If you don't know much about the connector,please make choose according the following factors
The use of enviroment,indoor or ourdoors,waterproof or not

Why choose us

lowe your cost,cheap cable assemble oofer,at least save your 30%-50% cost(100% compatible with original and work well)
Large stock,short lead time and easy to buy
We can provide OEM/ODM service and cable assembly solution
it has excellent compatibility with many leading supplier
our company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification
