Panel Mount Miniature Circular Connectors Sensor M8 8 Pin Female Connector

  • 1
  • 2

Brand Name : RAYMO

Model Number : RM-M8-8

Certification : RoHS2.0, ISO:9001-2015, CE , SGS, REACH

Place of Origin : Shenzhen, China

MOQ : 1piece

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C

Supply Ability : 5000pcs/week

Delivery Time : 5-8 working days

Packaging Details : 100pc/CTN

Prct Name : miniature circular connector

Number of Contacts : 8 pins

Mounting Type : panel mount

Termination Method : Solder/PCB

Contact Gender : Female

IP Rating : IP67

Current Rating : 1.5A

Body Orientation : Straight

Contact Now

Description for panel mount sensor M8 8 pins female miniature circular connector

The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.

Specification for panel mount sensor M8 8 pins female miniature circular connector

Prct attribute Attribute Value
Manufacturer RAYMO
Prct name miniature circular connector
Connector size M8
Contact Gender pole(female)
Number of contacts 8 contacts
Mounting Style Panel mount
Termination Style Solder/PCB
Current Rating 1.5A
IP Rating IP67
Application Sensors, Actuators
Shell Material (1) Connector material: Plastic PA+GF
(2) M8 male to female molded cable
(3) Contacts:Brass, Gold Plated
(4) Cable material: PVC/TPU
Wire Gauge 24-28AWG
Certifications ISO9001/ CE/ ROHS2.0/ SGS
Temperature Range -25°C, +80°C

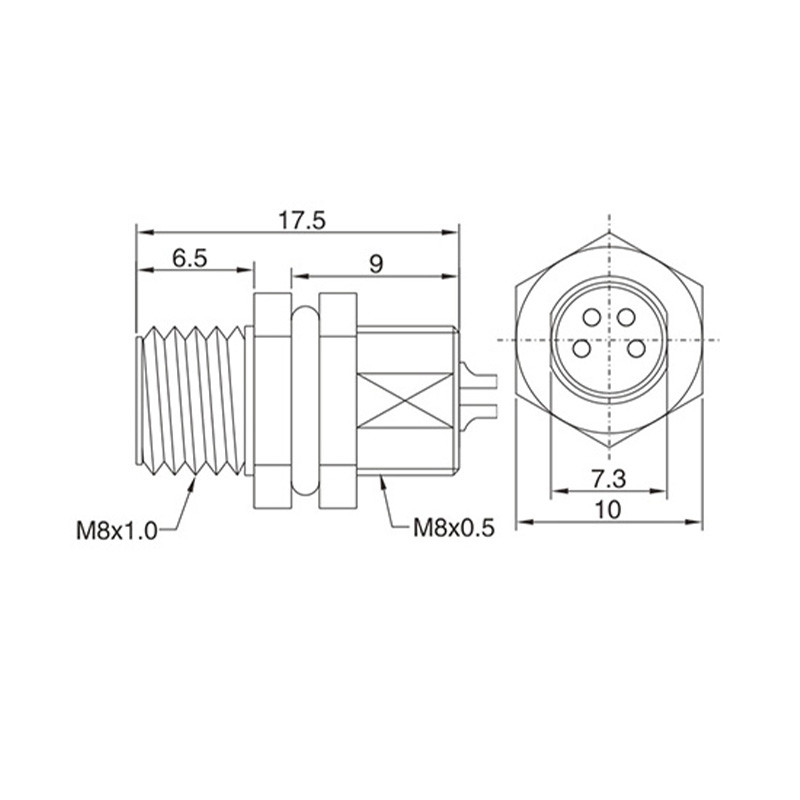

Electrical data & Mechanical data for panel mount sensor M8 8 pins female miniature circular connector

Contacts Rated current Voltage Wire gauge/size
A/C D/C mm2 AWG
3 pins 3A 50V 60V 0.25 24
4 pins 3A 50V 60V 0.25 24
5 pins 3A 30V 30V 0.25 24
6 pins 1.5A 30V 30V 0.14 26
8 pins 1.5A 30V 30V 0.14 26

Features for panel mount sensor M8 8 pins female miniature circular connector

  • Design as per IEC 61076-2-104
  • Size can be M5,M8,M12,M16
  • 360° EMC shielding is available for molded cable type
  • Gold-plated ternimals
  • 3,4,5,6,8 poles are available
  • Excellent performance
  • TPU over molded ot PA+GF shell
  • Perfect O-ring tightened sealing
  • Durable and anti-corrosion

Application for panel mount sensor M8 8 pins female miniature circular connector

With professional R&D and excellent craftsmanship, our factory has ability of providing customer with much more precision connectors and cable harness solutions to meet customer's demand in this fields.

  • Vacuum
  • TV and motion picture
  • Actuators
  • Industry
  • Communication systems
  • Data acquisition
  • Sensors

Our advantage for panel mount sensor M8 8 pins female miniature circular connector

  • Original manufacturer
  • Excellent R&D team
  • 10+ years experience
  • OEM & ODM acceptable
  • 100% quality tested
  • 100% fast delivery
  • 100% after-sales service

panel mount sensor M8 8 pins female miniature circular connector

Panel Mount Miniature Circular Connectors Sensor M8 8 Pin Female Connector
